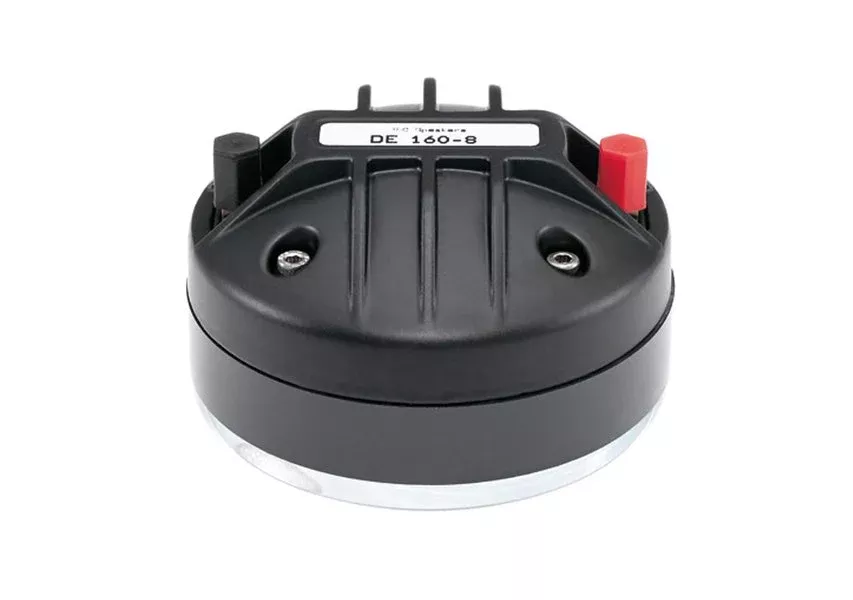

The B&C DRV160-8 is a 1″ bolt-on compression driver designed to deliver clear and powerful high-frequency sound reproduction. With an 80W continuous program power capacity, it can handle high power levels without distortion. The driver features a 1″ horn throat diameter and a 44mm (1.7 in) aluminum voice coil, ensuring efficient and accurate signal reproduction. The Mylar diaphragm provides excellent transient response and extended high-frequency range from 1500Hz to 18000Hz. With a sensitivity of 107dB, the DRV160-8 efficiently converts power into sound, delivering impressive volume and clarity.
The B&C DRV160-8 is designed for easy installation and compatibility with various horn designs. It has a nominal impedance of 8 and a minimum impedance of 7.4, making it compatible with a wide range of audio systems. The recommended crossover frequency is 2.0kHz for seamless integration with other drivers. The driver is constructed with high-quality materials, including an aluminum voice coil and a Mylar diaphragm, ensuring durability and long-term reliability. It features two M6 mounting studs with included bolts and washers for secure and convenient installation. With an overall diameter of 102mm (4.0 in) and a depth of 61mm (2.4 in), the DRV160-8 is compact and lightweight, weighing only 1.6kg (3.5 lb). Overall, the B&C DRV160-8 is a reliable and high-performance compression driver suitable for professional audio applications that require accurate and powerful high-frequency reproduction.
Features
80 W continuous program power capacity
1″ horn throat diameter
44 mm (1.7 in) aluminum voice coil
Mylar diaphragm
1500 – 18000 Hz response
107 dB sensitivity
Specifications
Throat Diameter: 25 mm (1.0 in)
Nominal Impedance: 8
Minimum Impedance: 7.4
Nominal Power Handling: 40 W
Continuous Power Handling: 80 W
Sensitivity (1W/1m): 107.0 dB
Frequency Range: 1.5 – 18.0 kHz
Recommended Crossover: 2.0 kHz
Voice Coil Diameter: 44 mm (1.7 in)
Winding Material: Aluminium
Inductance: 0.11 mH
Diaphragm Material: Mylar
Flux Density: 1.5 T
Magnet Material: Ferrite Two M6 holes 180 on 76 mm (3 in) diameter
Overall Diameter: 102 mm (4.0 in)
Depth: 61 mm (2.4 in)
Net Weight: 1.6 kg (3.5 lb)
Shipping Units: 1
Shipping Weight: 1.63 kg (3.58 lb)
Shipping Box: 105x105x65 mm (4.13×4.13×2.56 in)
Other Details: 2x M6 Mounting Studs with bolts and washers included
