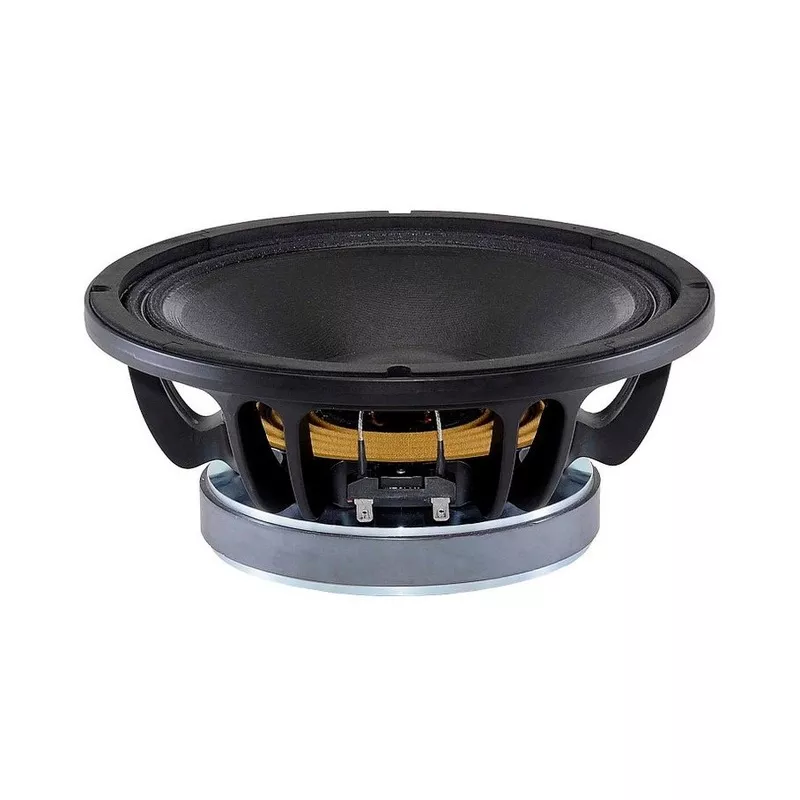

B&C 10 500 Watt 8 Ohm Speaker Driver – 10FW64

Overview

• 500 W continuous program power capacity
• 64 mm (2.5 in) aluminium voice coil
• 65 – 3000 Hz response
• 98 dB sensitivity

Specifications

• Nominal Diameter: 250 mm (10.0 in)
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.4 Ohm
• Nominal Power Handling: 250 W
• Continuous Power Handling: 500 W
• Sensitivity (1W/1m): 98.0 dB
• Frequency Range: 65 – 3000 Hz
• Voice Coil Diameter: 64 mm (2.5 in)
• Winding Material: Aluminium
• Former Material: Glass Fibre
• Winding Depth: 14.0 mm (0.55 in)
• Magnetic Gap Depth: 8.0 mm (0.31 in)
• Flux Density: 1.25 T
• Overall Diameter: 261 mm (10.3 in)
• Bolt Circle Diameter: 245 mm (9.6 in)
• Baffle Cutout Diameter: 230.0 mm (8.8 in)
• Depth: 116 mm (4.6 in)
• Flange and Gasket Thickness: 13 mm (0.5 in)
• Air Volume Occupied by Driver: 2.5 dm3 (0.09 ft3)
• Net Weight: 5.9 kg (13.0 lb)
• Shipping Units: 1
• Shipping Weight: 6.5 kg (14.3 lb)
• Shipping Box: 295x314x175 mm (11.61×12.36×6.89 in)
