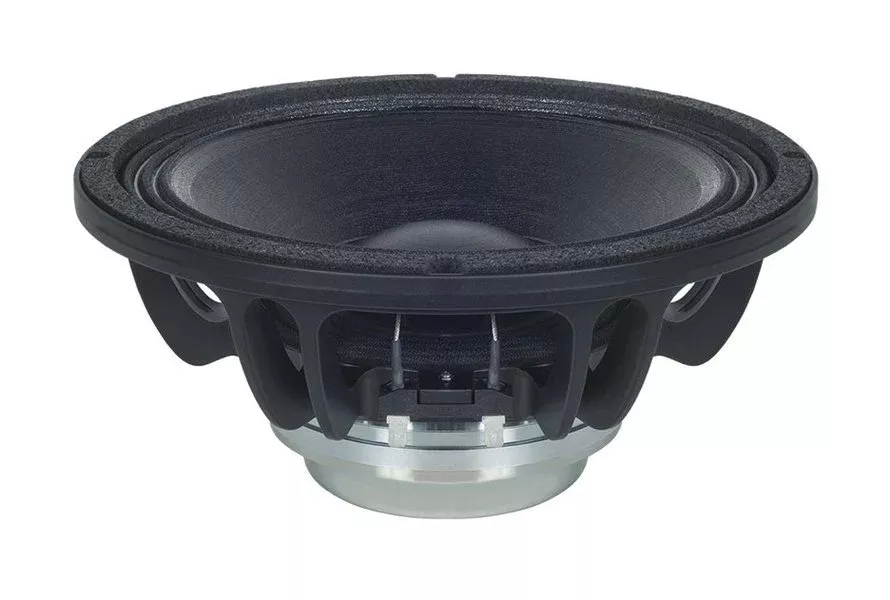

Over the last several years, B&C has pushed neodymium magnet woofer performance to the next level. The deep, 3″ (76mm) diameter voice coil utilized in the 10NW76 provides increased power handling and more overall output. A proven B&C suspension system combines a triple roll surround and single spider for superior, reliable Xmax and balanced output. An aluminium demodulation ring keeps distortion low, while the deeper, high power voice coil is cooled using a ventilated voice coil gap. Extreme performance and reliability, excellent value.
Features
800 W continuous program power capacity
76 mm (3 in) copper clad aluminum wire voice coil
65 – 3500 Hz response
96.3 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Aluminium demodulating ring for very low distortion
Ventilated voice coil gap for reduced power
Specifications
Nominal Diameter: 250 mm (10.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.6 Ω
Nominal Power Handling: 400 W
Continuous Power Handling: 800 W
Sensitivity: 96.3 dB
Frequency Range: 65 – 3500 Hz
Voice Coil Diameter: 76 mm (3.0 in)
Winding Material: CCAW
Former Material: Glass Fibre
Winding Depth: 18.5 mm (0.73 in)
Magnetic Gap Depth: 10.0 mm (0.39 in)
Flux Density: 1.35 T
Design
Surround Shape: Triple Roll
Cone Shape: Curvilinear
Magnet Material: Neodymium Ring
Spider: Single
Pole Design: T-Pole
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Enclosure: 26.0 dm3 (0.92 ft3)
Recommended Tuning: 65 Hz
Mounting and Shipping Info
Overall Diameter: 261 mm (10.28 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 233.0 mm (9.17 in)
Depth: 119 mm (4.69 in)
Flange and Gasket Thickness: 13 mm (0.51 in)
Air Volume Occupied by Horn: 1.5 dm3 (0.05 ft3)
Net Weight: 3.8 kg (8.38 lb)
Shipping Units: 1
Shipping Weight: 4.4 kg (9.7 lb)
Shipping Box: 295x314x175 mm (11.61×12.36×6.89 in)
