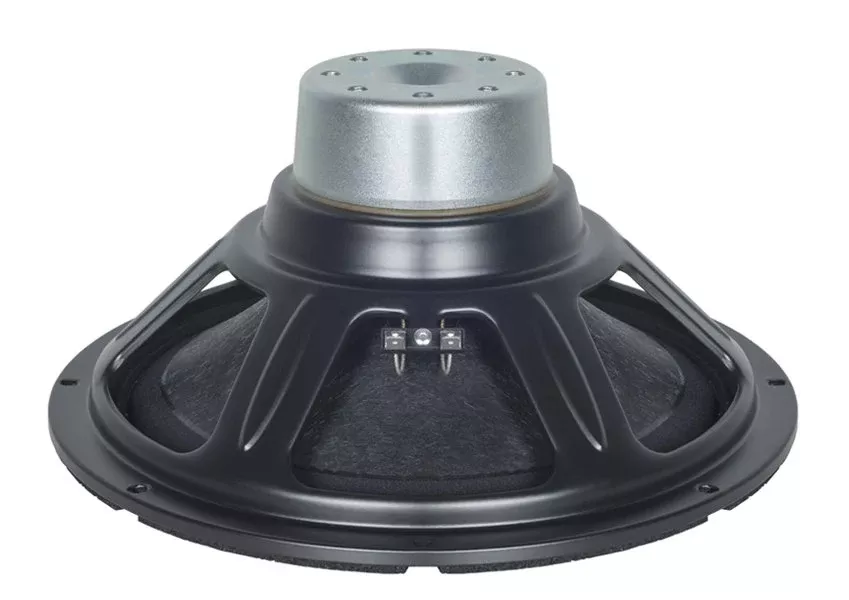

The B&C 12CL76 is a high-performance 12-inch neodymium woofer speaker designed for professional audio applications. It features a robust construction and advanced components that deliver exceptional sound quality and reliability. With a continuous program power capacity of 350W and a peak power handling of 700W, this speaker can handle demanding audio signals with ease.
The 12CL76 boasts a 76mm (3-inch) copper voice coil, which ensures efficient power handling and minimal power compression. It offers a wide frequency response ranging from 45Hz to 3000Hz, making it suitable for a range of applications. With a sensitivity of 98.5dB, this speaker produces loud and clear sound even at lower power levels.
The woofer is equipped with a ventilated voice coil gap and a neodymium magnet, allowing for effective heat dissipation and reduced distortion. The triple roll surround and exponential cone shape contribute to improved sound dispersion and accurate reproduction of audio signals. With a recommended enclosure size of 40.0 dm3 (1.41 ft3) and tuning at 60Hz, the B&C 12CL76 delivers optimized bass response and balanced performance.
Whether used in professional sound reinforcement systems, live performances, or studio monitoring, the B&C 12CL76 neodymium woofer speaker offers powerful and precise audio reproduction, making it a reliable choice for audio professionals and enthusiasts alike.
Specifications
Nominal Diameter: 320 mm (12.0 in)
Nominal Impedance: 8 Ohm
Minimum Impedance: 6.5 Ohm
Nominal Power Handling: 350 W
Continuous Power Handling: 700 W
Sensitivity (1W/1m): 98.5 dB
Frequency Range: 45 – 3000 Hz
Voice Coil Diameter: 76 mm (3.0 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 17.0 mm (0.67 in)
Magnetic Gap Depth: 11.0 mm (0.43 in)
Flux Density: 1.05 T
Surround Shape: Triple Roll
Cone Shape: Exponential
Magnet Material: Neodymium Inside Slug
Spider: Single
Pole Design: Straight Pole
Woofer Cone Treatment: WP Waterproof Front Side
Recommended Enclosure: 40.0 dm3 (1.41 ft3)
Recommended Tuning: 60 Hz
Overall Diameter: 313 mm (12.32 in)
Bolt Circle Diameter: 299 mm (11.77 in)
Baffle Cutout Diameter: 282.0 mm (11.1 in)
Depth: 142 mm (5.59 in)
Flange and Gasket Thickness: 9 mm (0.35 in)
Air Volume Occupied by Driver: 2.3 dm3 (0.08 ft3)
Net Weight: 3.35 kg (7.39 lb)
Shipping Units: 1
Shipping Weight: 4.25 kg (9.37 lb)
Shipping Box: 360x360x200 mm (14.17×14.17×7.87 in)
