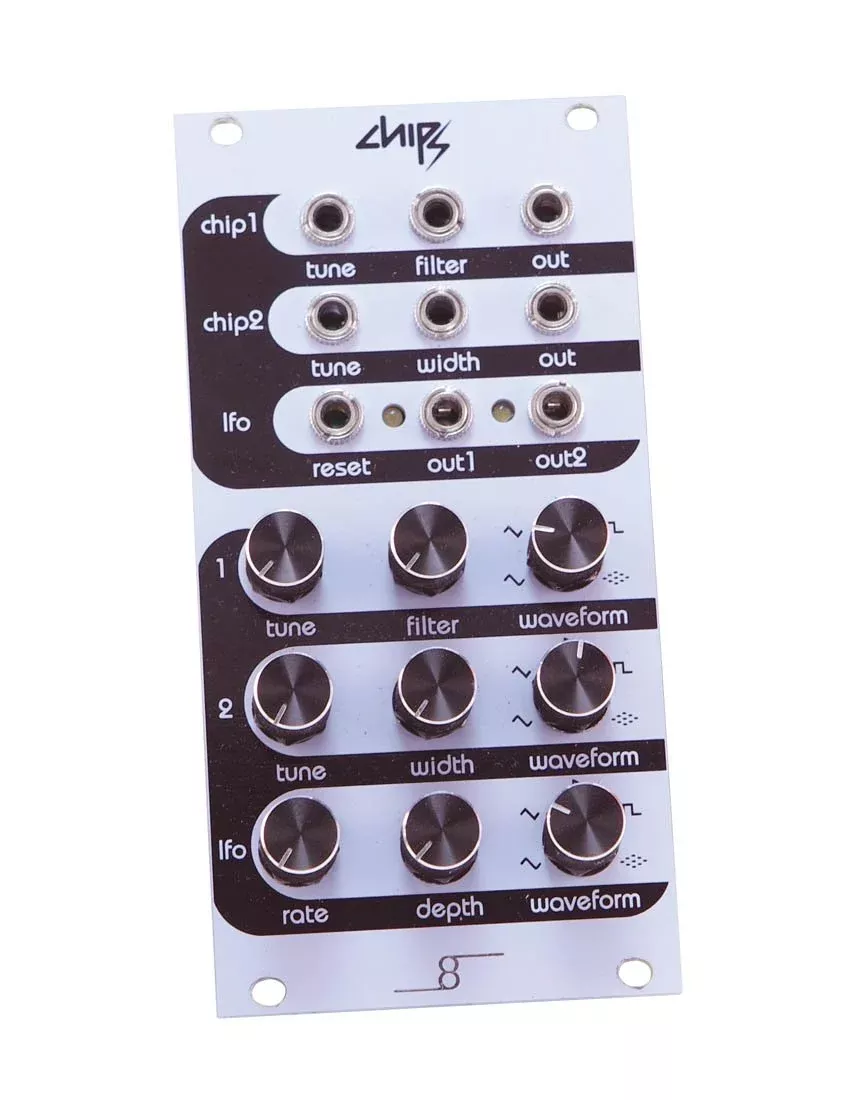

Chipz is a chiptune-inspired eurorack synth module, which will take you back to the halcyon sounds of the ’80s. Cre8audio started out the idea that Chipz would be a 3 oscillator synth that takes you to an alternate universe in which your old console isn’t for playing video games but is a module in your eurorack compatible system, the idea evolved into something a bit higher resolution with a bunch more horsepower. Chipz is a dual VCO and dual LFO module with each offering sine, triangle, saw, square and noise waveforms.
Specifications
Width: 12hp
Depth: 30mm
Waveforms
chip1 – sine, triangle, saw, square, noise
chip2 – sine, triangle, saw, square, noise
LFO – sine, triangle, saw, square, noise
35mA power draw when running +12V rail
30mA power draw when running +5V rail
19mA power draw when running -12V
0-5V voltage range LFO output 1
0-5.8V voltage range LFO output 2
Frequency range of oscillators
chip1 – out 91 ~ 1.47K
chip2 – out 91 ~ 1.47K
lfo – out1 75.75m ~ 2
lfo – out2 370m ~ 10
Input voltage range of oscillators: 0-10V
Minimum voltage required to set LFO trigger input high: 0.7 ~ 5V
